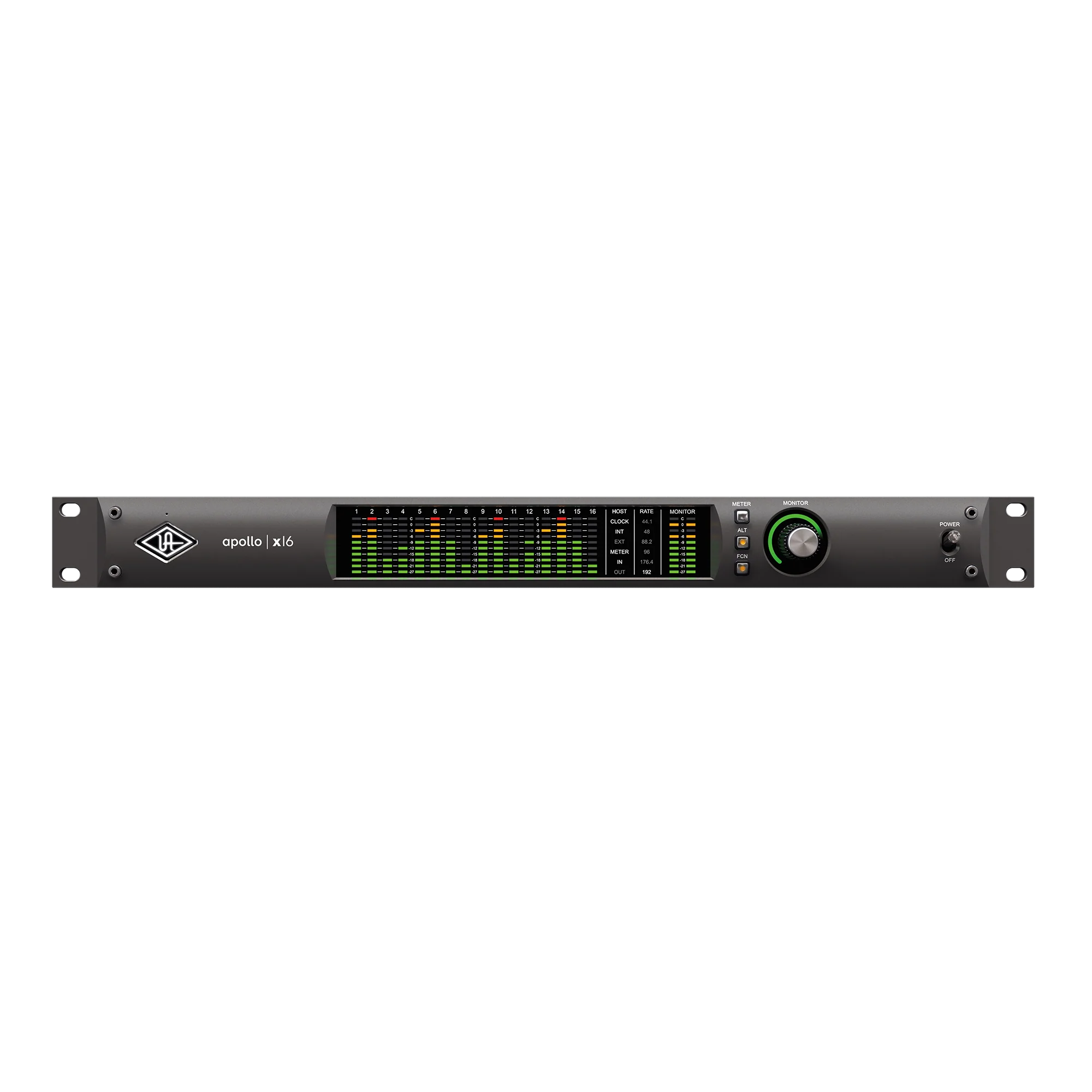

Universal Audio Apollo x16 Heritage Edition pairs elite 24-bit/192 kHz conversion with 16x16 line-level I/O over DB25, HEXA Core DSP, and Thunderbolt 3 for large-format workflows that lean on outboard preamps and consoles. The design is deliberately line only. Feed it your favorite mic pres, sum through hardware, or park it on a patchbay and keep latency low while printing through UAD plug-ins in real time. Immersive engineers get native support for multichannel monitoring up to 9.1.6, so Dolby Atmos and similar layouts are not an afterthought. (Sweetwater)

Analog and digital connectivity are straightforward. Four DB25 ports deliver 16 inputs and 16 outputs at +24 dBu headroom, with a dedicated stereo monitor pair on XLR and AES/EBU I/O on XLR for two more digital channels. Dual Thunderbolt 3 ports accommodate daisy-chaining or multi-Apollo systems. Word Clock in and out over BNC keeps multi-box rigs locked. There are no onboard mic preamps to color the signal path, which is the point for users who already made those choices in their racks. (Vintage King)

Conversion performance is the headline. Apollo x16 achieves up to 133 dB dynamic range with vanishingly low distortion, making it UA’s highest-resolution rack converter. Monitoring remains precise at any level and translates well when stems leave the room. When sessions scale beyond a single box, clocking stays solid and imaging does not collapse.

Real-time UAD processing runs on the internal HEXA Core, so tracking through classics like 1176, LA-2A, or API/Neve channel strips feels immediate and does not lean on host CPU. Console software builds per-artist cue mixes quickly, recalls routings, and lets you commit sounds on the way in or keep them virtual for later edits. The Heritage Edition bundle loads the account with flagship plug-ins on day one, which shortens the distance from first take to print-ready stems.

If the requirement is a single rack unit that interfaces cleanly with analog hardware, handles immersive monitor control up to 16 channels, and provides reliable low-latency UAD processing, Apollo x16 Heritage Edition is built for that exact job.

Shop All Universal Audio Effects and Devices

Shop All Pro Audio and Interfaces

Shop All New Arrivals

• Thunderbolt recording
• Windows and Mac compatible

• 16 x 16 analog I/O via DB-25 connections
• Mic preamp emulations from Neve, API, Manley, Helios, and Universal Audio.
• Apollo A/D and D/A conversion
• HEXA Core processing with six DSP chips
• LUNA Recording system included
• Low-latency recording
• Rugged, compact construction
